Load Bank (10KW to 6000KW)

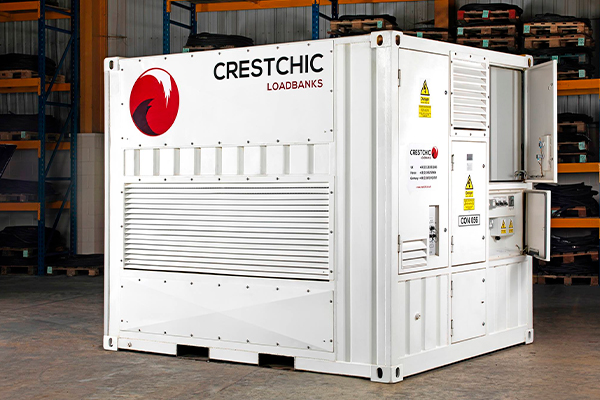

We manufacture an unrivalled choice of resistive and resistive/reactive load banks. Our containerised load banks lead the market in terms of control, rugged construction and global installed base. Crestchic containerised load banks enable businesses from shipbuilders to power generation companies to accurately test, commission and maintain vital operations.

Our purpose-designed air-cooled AC load banks are available in resistive form, or resistive / reactive for replicating a lagging power factor for complete engine and alternator testing. Both types are available in a range of sizes and specifications housed in ISO style mini, 10, 20, 30 & 40ft containers, and all are flexible enough to be used with your preferred control system.

thumb


thumb

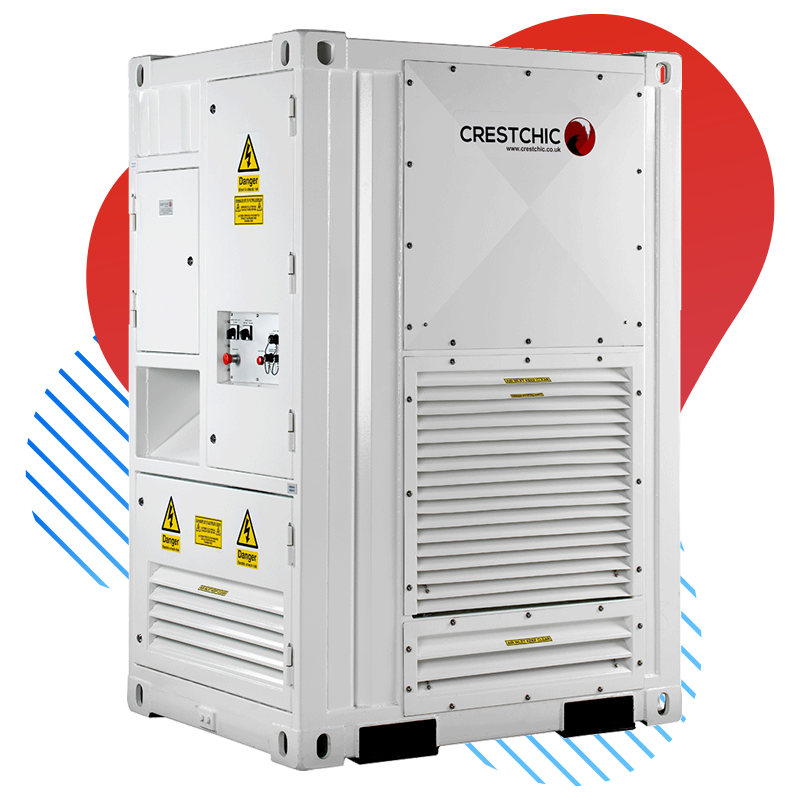

Resistive / Reactive Load Banks


  • Voltage from 380V to 690V
  • Typical power factor 0.8
  • 50-60 HZ
  • 375kVA to 6250kVA
  • Multiple 1kW load steps
  • IP55 control protection
  • Low noise versions
  • Stainless steel finned elements
  • Ferroglass insulated bulkheads
  • Standard canopy sizes to 300kVA
  • Container packages over 375kVA
  • Lloyd’s Register-certified
  • Ambient temperature capacity rating at 50ºC
  • Reactive-only (inductive) load banks available
  • ISO containers sized 10ft, 20ft, 30ft or 40ft
  • Stainless steel louvres and galvanised exhaust outlets.

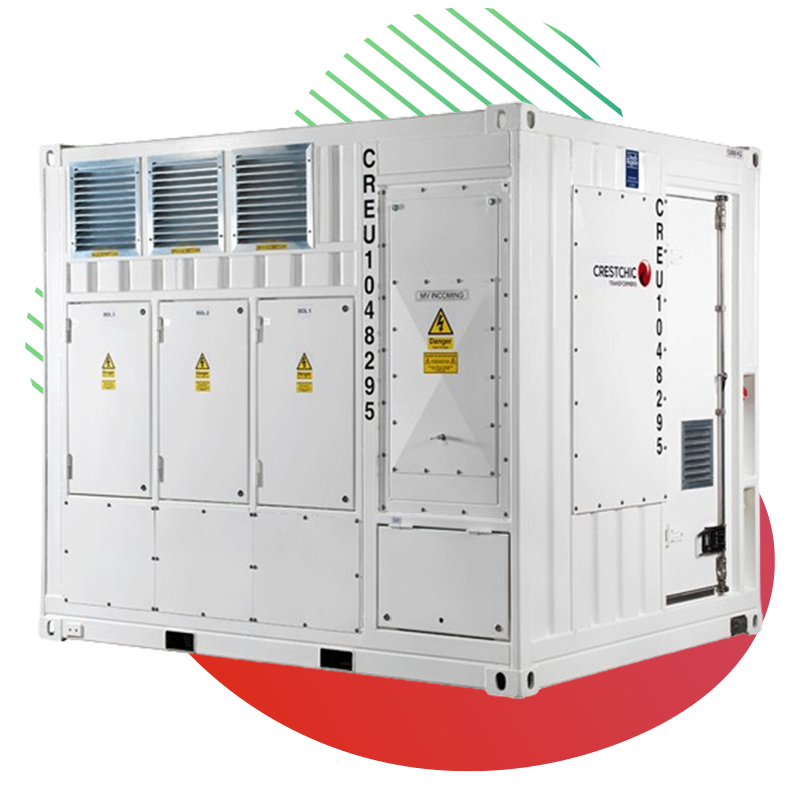

Medium Voltage Load Banks

When it’s essential to test medium voltage equipment but you’re working with a small footprint, our state-of-the-art MV products combine load banks and transformers into one ideal, containerised solution.

Available in both resistive and resistive/reactive forms, our AC MV load banks can be custom-designed to your exact voltage, frequency and capacity needs, alongside the flexibility to use a control system best suited to you.


  • Voltage from 690V to 34kV
  • 50-60 HZ
  • Multiple 1kVA/1kW load steps
  • IP55 control protection
  • Stainless steel fans
  • 500kVA – 3500kVA
  • 500kW – 4000kW
  • Lloyd’s Register-certified
  • Both resistive-only and resistive/reactive
  • Ambient temperature capacity rating at 50ºC
  • ISO container enclosure, 10ft, 20ft, 30ft and 40ft
  • Ferroglass insulated bulkheads
  • Stackable when not in operation
  • Stainless steel louvres and galvanised exhaust outlets.
thumb


thumb

Medium Voltage Load Banks

When it’s essential to test medium voltage equipment but you’re working with a small footprint, our state-of-the-art MV products combine load banks and transformers into one ideal, containerised solution.

Available in both resistive and resistive/reactive forms, our AC MV load banks can be custom-designed to your exact voltage, frequency and capacity needs, alongside the flexibility to use a control system best suited to you.


  • Voltage from 690V to 34kV
  • 50-60 HZ
  • Multiple 1kVA/1kW load steps
  • IP55 control protection
  • Stainless steel fans
  • Ambient temperature capacity rating at 50ºC
  • ISO container enclosure, 10ft, 20ft, 30ft and 40ft
  • Lloyd’s Register-certified
  • Both resistive-only and resistive/reactive
  • 500kVA – 3500kVA
  • 500kW – 4000kW
  • Ferroglass insulated bulkheads
  • Stainless steel louvres and galvanised exhaust outlets.
  • Stackable when not in operation


thumb

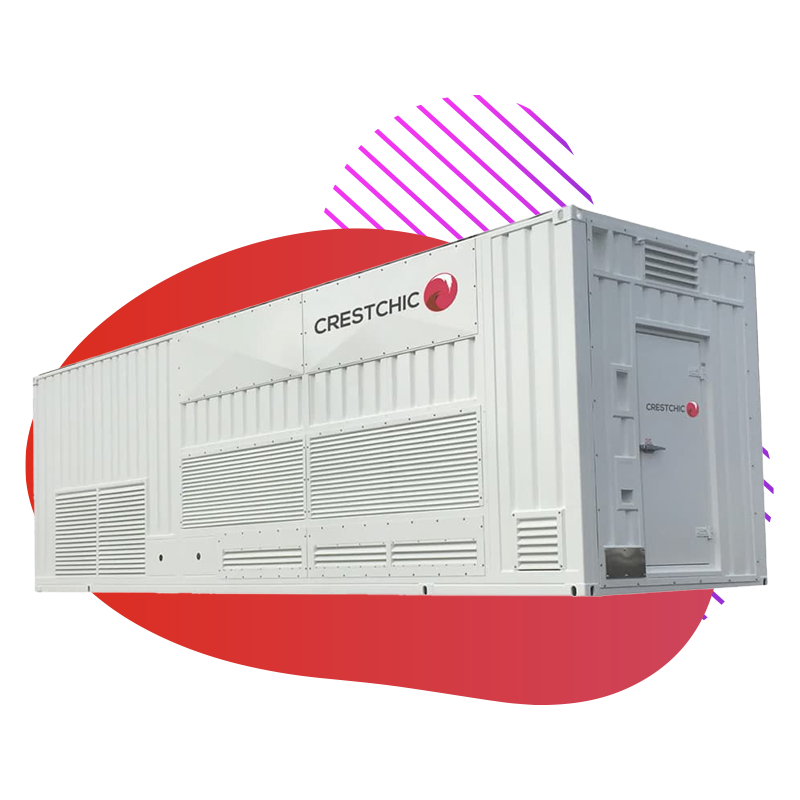

Containerised Transformers

Our services go beyond load banks. To provide a complete solution for temporary power generation, as well as to complement our load banks, we provide containerised transformers to suit your needs.

Available in step-up or step-down our transformers range from 2000kVA to 8000kVA, with voltage from 400V to 34.6kV. All are fitted into custom-designed, purpose-built containers that enhance their performance and offer unrivalled protection.

  • MV & LV switchgear installed
  • Cast resin or oil filled transformer options
  • Fitted complete with over current and short protection on the MV breaker
  • ISO fully bonded containers with save-all base
  • ONAN or ONAF variants available
  • Stackable
  • 4 pole isolators for flexible generator connections
